40152-L/40152-S Lithium-ion Rechargeable Battery Cell 3.2V 15/17Ah

Product Description:

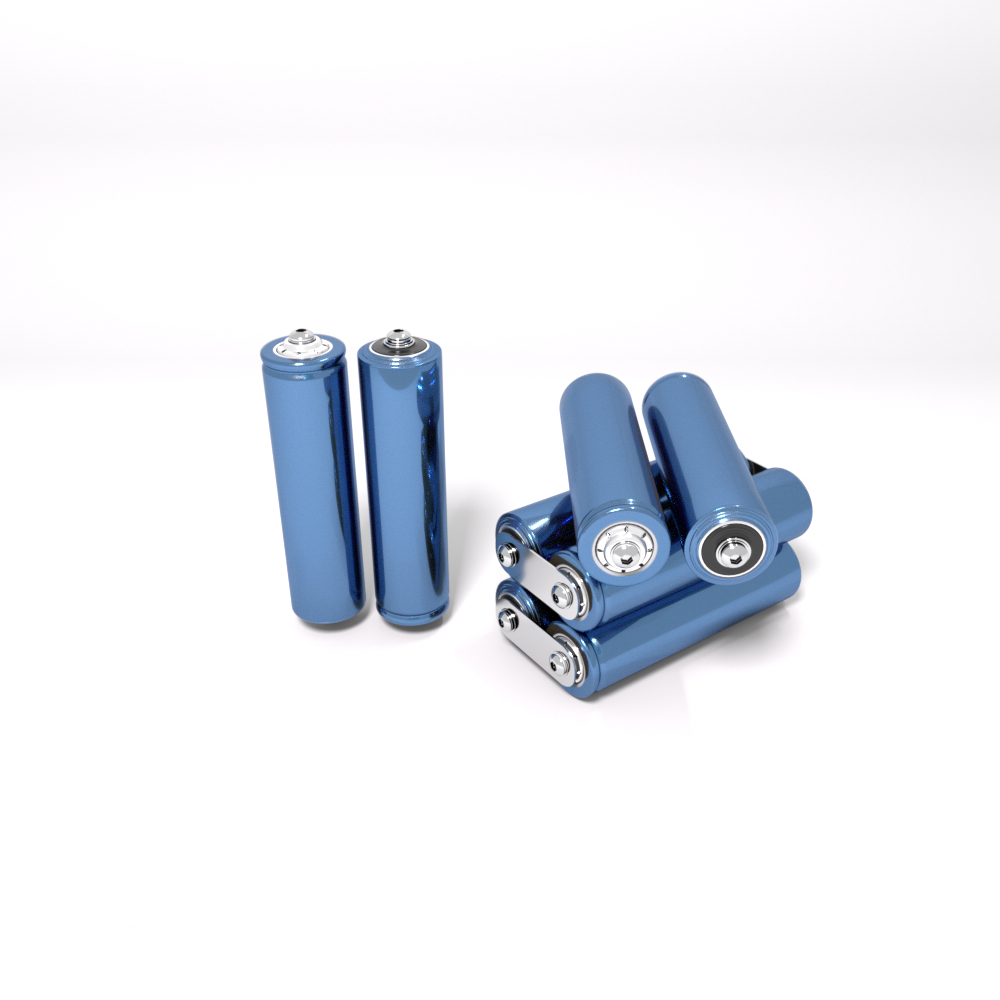

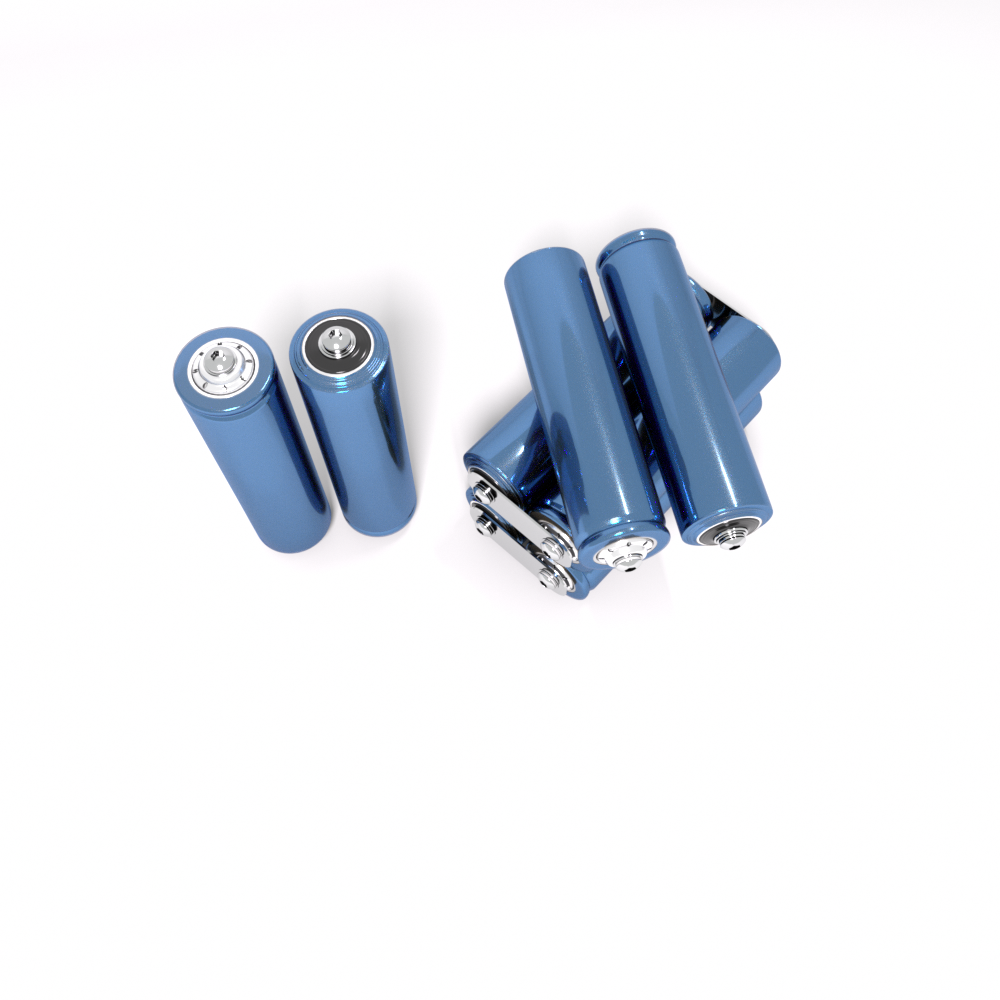

40152 3.2V 15/17Ah models are available in two different configurations:

1) The model 40152 L lithium battery is connected in spot welding and has a smaller volume.

2) The model 40152 S lithium battery adopts a screw structure, which makes the installation and connection of

the battery more convenient and quick.

Application

The bolted connection method is suitable for places with larger current and voltage, solar energy storage battery

pack, UPS backup battery energy storage package

Electric vehicles, electric forklifts, UPS, energy storage cabinets, AGV, intelligent robots, and various types of

electric equipment.

40152 Characteristics Curves

40152-L 17000mAh		40152-S 15000mAh		40152-S 17000mAh
Specification		Specification		Specification
Nominal Voltage	3.2V	Nominal Voltage	3.2V	Nominal Voltage	3.2V
Nominal Capacity(0.5C,25℃)	17Ah	Nominal Capacity(0.5C,25℃)	15Ah	Nominal Capacity(0.5C,25℃)	17Ah
Weight(Approximate)	465±5g	Weight(Approximate)	475±5g	Weight(Approximate)	480±5g
Standard Discharge@25℃		Standard Discharge@25℃		Standard Discharge@25℃
Recommended Discharge Current	17A	Recommended Discharge Current	15A	Recommended Discharge Current	17A
Max. Discharge Current	34A	Max. Continuous Current	45A	Max. Continuous Current	34A
Max. 3 sec. Pulse	170A	Max. 30 sec. Pulse	150A	Max. 3 sec. Pulse	170A
Cut-off Voltage	2.0V	Cut-off Voltage	2.0V	Cut-off Voltage	2.0V
Standard Charge		Standard Charge		Standard Charge
Charge Voltage	3.65V	Charge Voltage	3.65V	Charge Voltage	3.65V
Recommended Charge Current	8.5A	Recommended Charge Current	15A	Recommended Charge Current	8.5A
Max. Charge current	17A	Max. Charge current	30A	Max. Charge current	17A
		Charge Time	60min ( can be customized)

Send your message to us

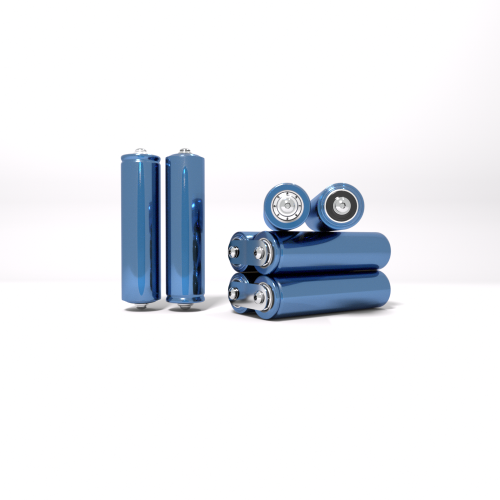

40152 Rechargeable Lithium Ion Battery LFP
