Specification \ Products

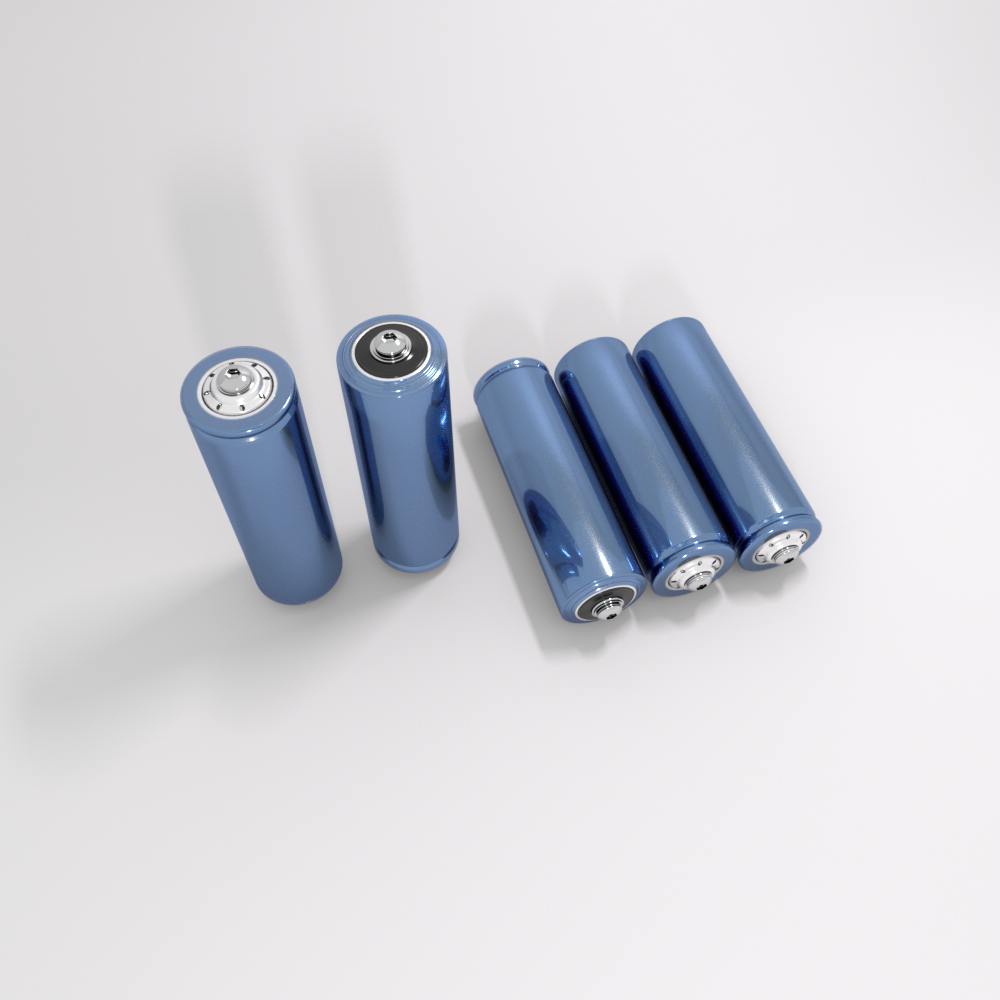

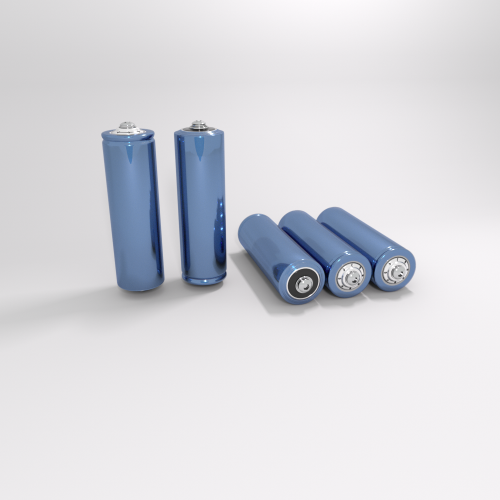

38120N

38120S

Nominal capacity @ 0.5C

10.0Ah

Operating voltage range

2.0-3.65V

Nominal voltage

3.20V

Internal resistance

≤4mOhm

Cell dimension

Φ38*120mm

Φ38*135mm

Standard charge current

1C（25℃）

Max charge current

2C（≥10℃）

Standard discharge current

1C（25℃）

Max discharge current

3C（25℃）

Max instantaneous discharge current (30s)

10C

Cycle life (standard condition)

10000+ in lifetime, 2000 above 80% Capacity

-10℃ discharge capacity （vs.25℃) @ 0.5C

60%

Recommended working temperature

-10~45℃

Capacity retention ratio @ 25℃ for 28d

≥97%

Capacity recovery ratio @ 25℃ for 28d

99%

Single core weight

310g

330g

Cathode material

LiFeCoPO4

Anode material

Graphite

Diaphragm material

Polypropylene coated alumina

Executive standard

GB/T31484-2015

GB/T31485-2015

GB/T31486-2015

YD/T2344.1-2011

YD/T2344.2-2015

IEC62133-2:2017

UL1642

UL1973
