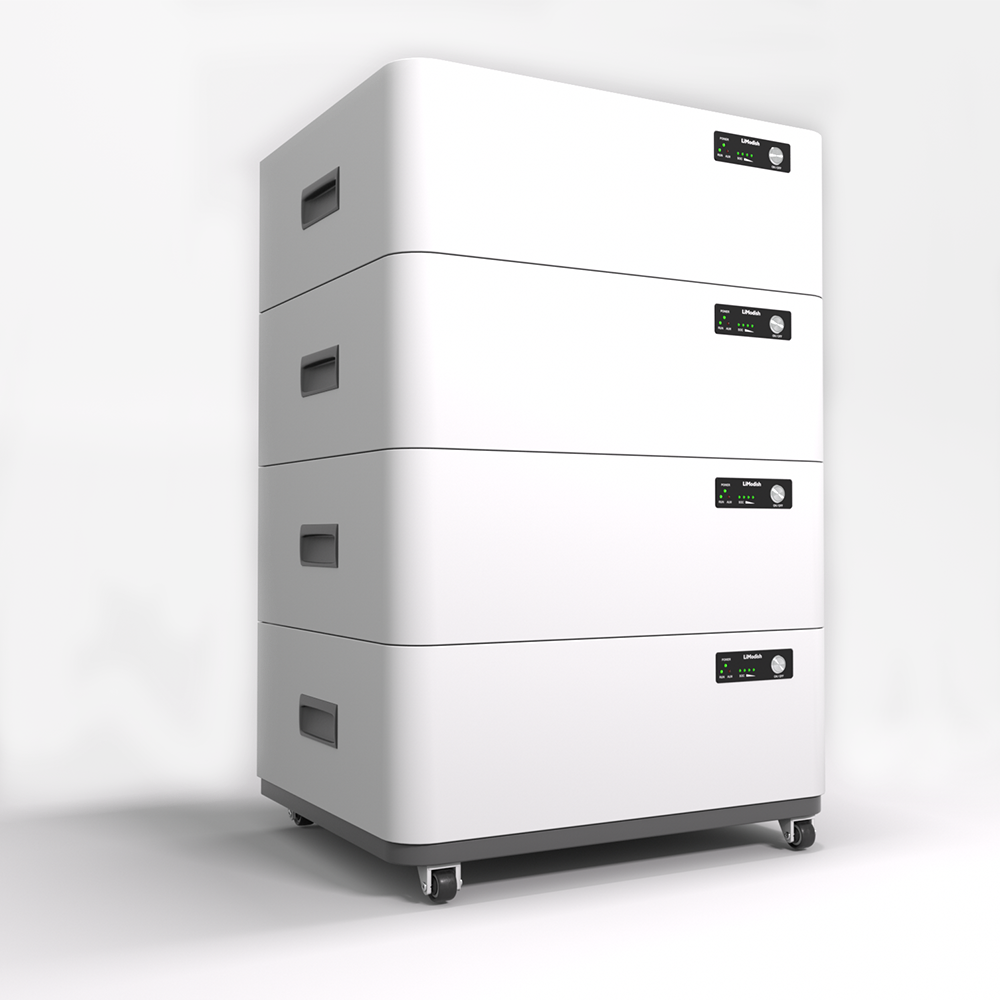

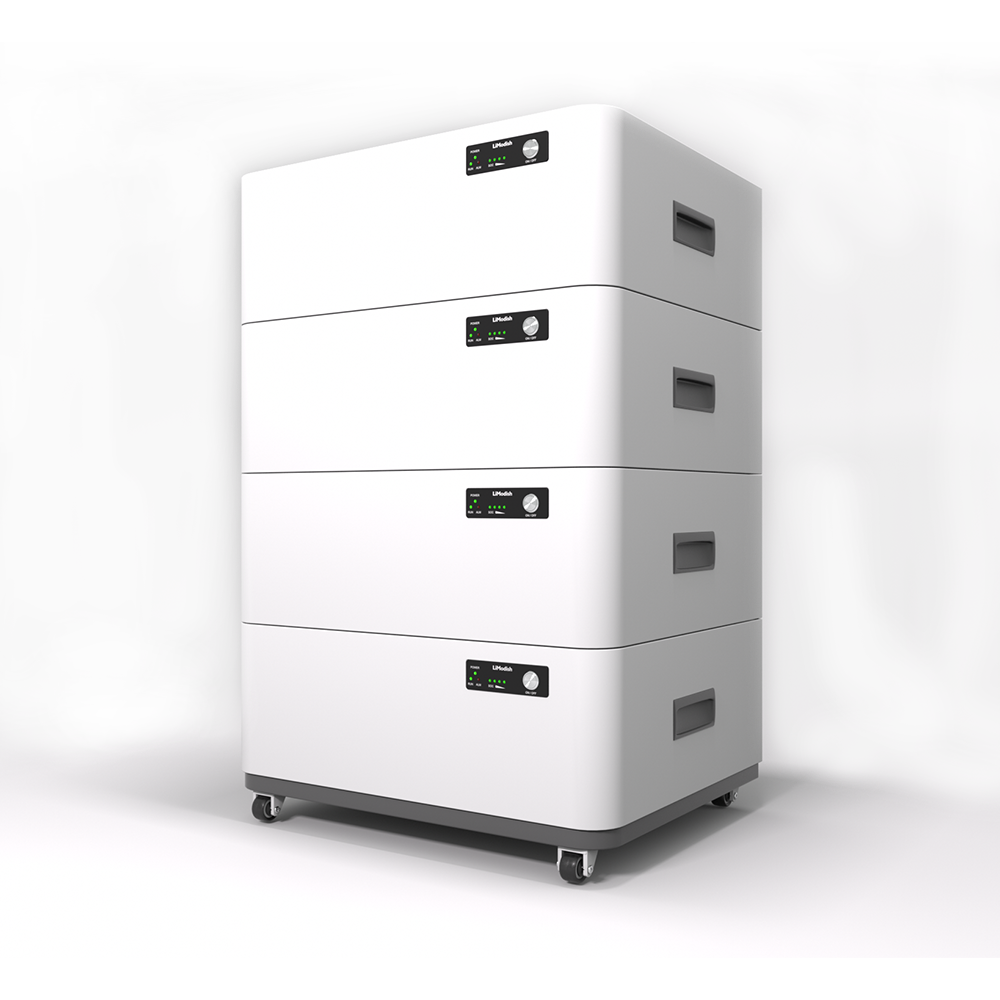

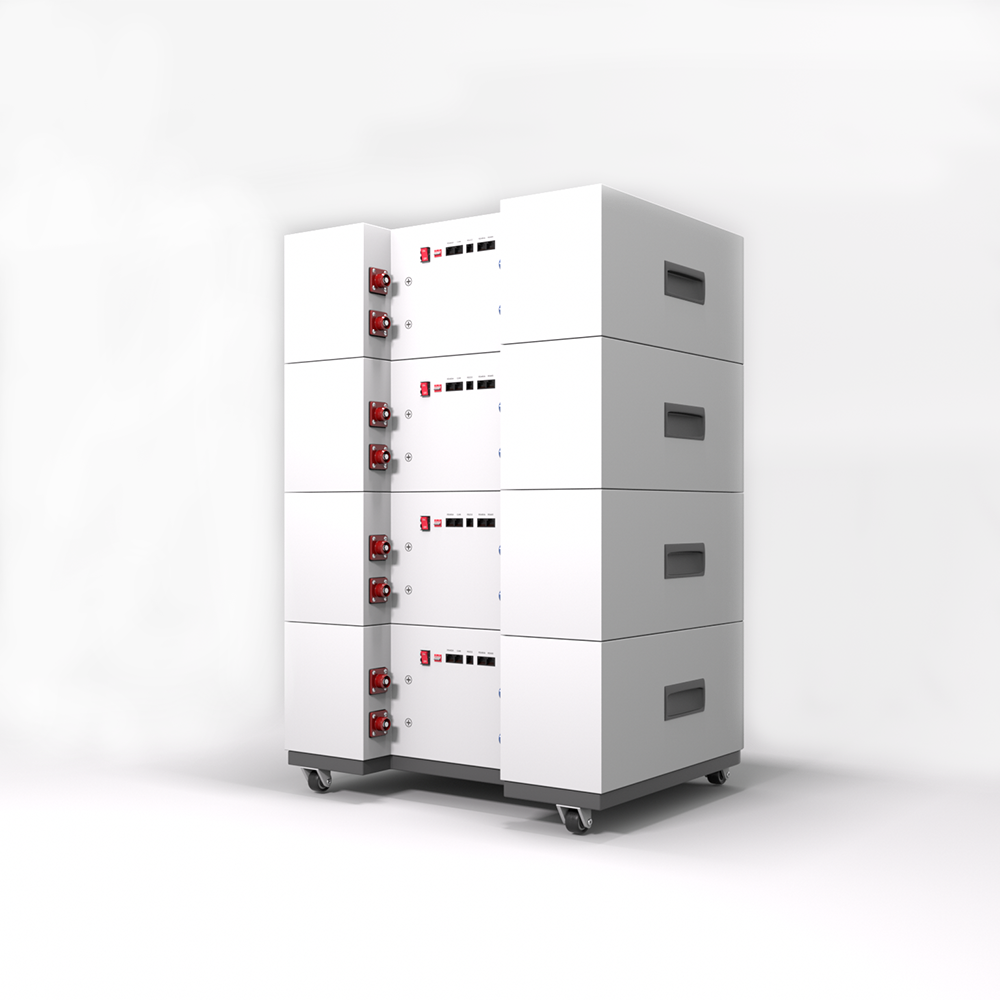

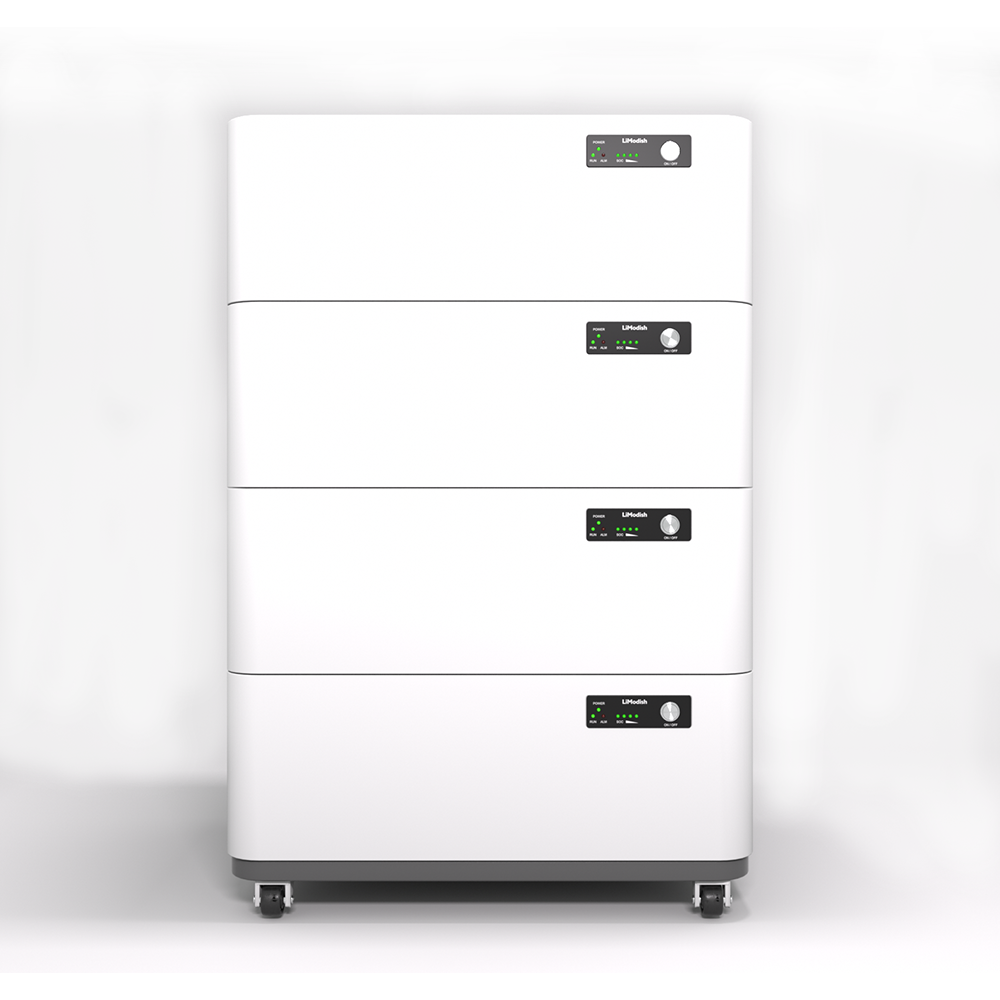

4 sets Stackable Home Energy Backup

Item No.: 00101
The four sets of  Stackable Home Energy Backup have a 400 Ah rated capacity in total. This specification fits the LiFePO4 battery pack for home energy storage.
Description
Description

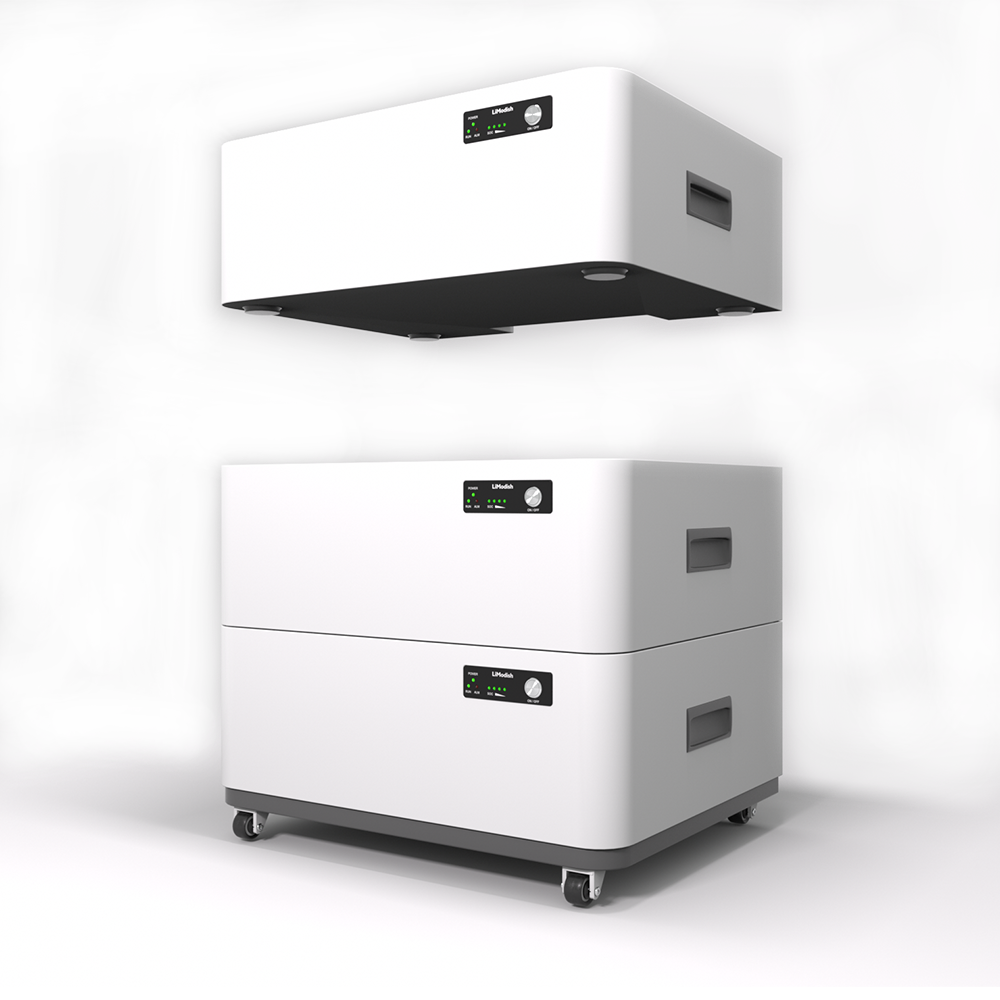

The stackable home energy storage can be set as six layers with six sets, which could contain 400Ah rated capacity and 30.72 KWh. If your use of scene space height is not enough, using 4 sets of single piles is recommended. When 4 sets are in one pile, the capacity will be 20.48KWh. And customers can use this product with many piles for an exponential of 20.48KWh. For example, 40.96KWh(2 piles with 8 sets) and 122.88KWh(6 piles with 24 sets).

It can full fill the large house or villa's daily power requirement.

This product is suitable for 24-hour energy storage, an intelligent BMS home energy storage system, and provides full-scenario DC power services. Ideal for home, microgrid, or commercial school use.

Features
  • Safe and reliable with lithium iron phosphate (LFP) battery
  • Flexible use, 5.12KWh modular design, expandable from 5.12KWh to 20.48KWh(4 sets)
  • Rechargeable cycle life 10000+ times, 3000 above 80% Capacity
  • 100% depth of discharge (DoD)
  • More usable energy with battery pack energy optimization
  • Compatible with 30+ leading brands of single-phase and three-phase off-grid/hybrid inverters
  • Part of the battery module is automatically isolated to keep the system running when that part of the battery is low
  • APP automatic detection system
Lithium-ion batteries are rechargeable lithium-ion batteries that can be used in series for more energy storage. The energy input comes from green energy sources such as wind or solar energy and electrical energy storage devices that can operate simultaneously to output electrical energy. For example, wind and solar power are unstable and have not always been accessible to supplThethe energy storage system problem will be sol with a wall-mounted battery packed. The rechargeable lithium battery uses a safe lithium battery, LIFEPO4. The battery has achieved market-leading energy density.

Each set of Layer parameters

NO

Items

Parameter

Remarks



2.1

Rated Capacity

100Ah (16S1P)

Discharge:0.2C

cut-off voltage:2.7V

Minimum Capacity

≥99.5Ah

2.2

Energy

5.12KWh



2.3

Nominal Voltage

48V /51.2V



2.4

Open Voltage

48V~52V



2.5

Load Voltage

≥48V



2.6

Internal Impedance

≤80mΩ

AC 1KHz after standard charge

2.7

Charge voltage

58.4V



2.8

Standard charge current

50A

0.5C

2.9

Max charge current

100A

1.0C

2.10

Standard discharge current

100A

1C

2.11

Max discharge current

100A continuous

1C

2.12

Discharge cut-off voltage

43.2V





2.13



Operating Temperature

0~+60℃

Charge

-20~+60℃

Discharge



2.14



Storage Temperature

-20℃~+60

one month

-20℃~+30

six months
