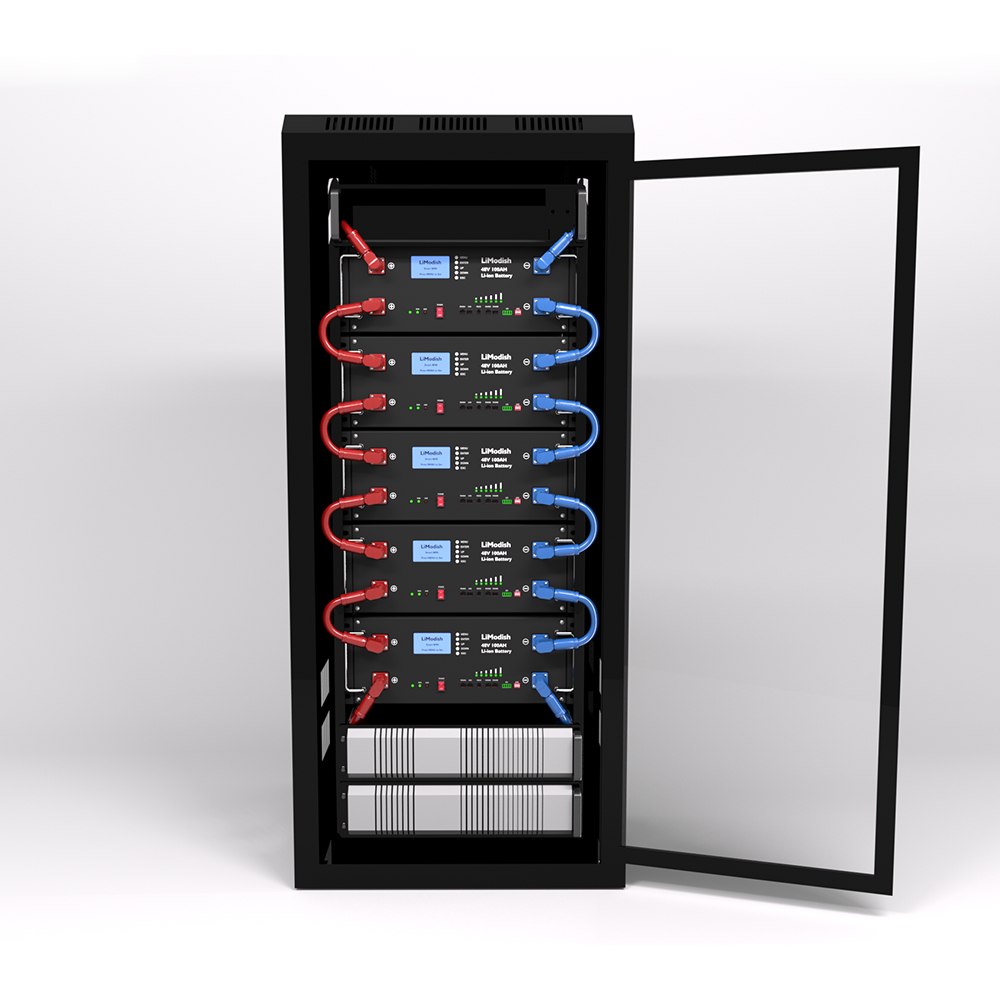

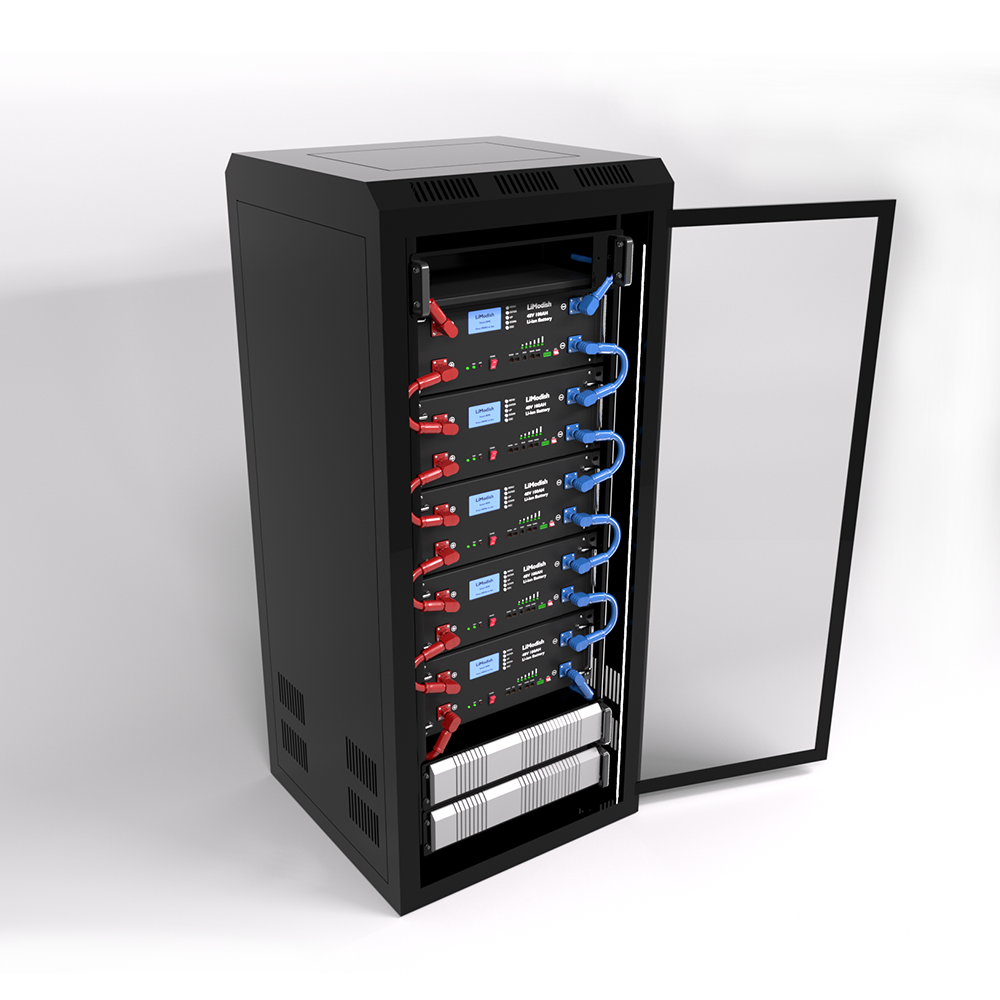

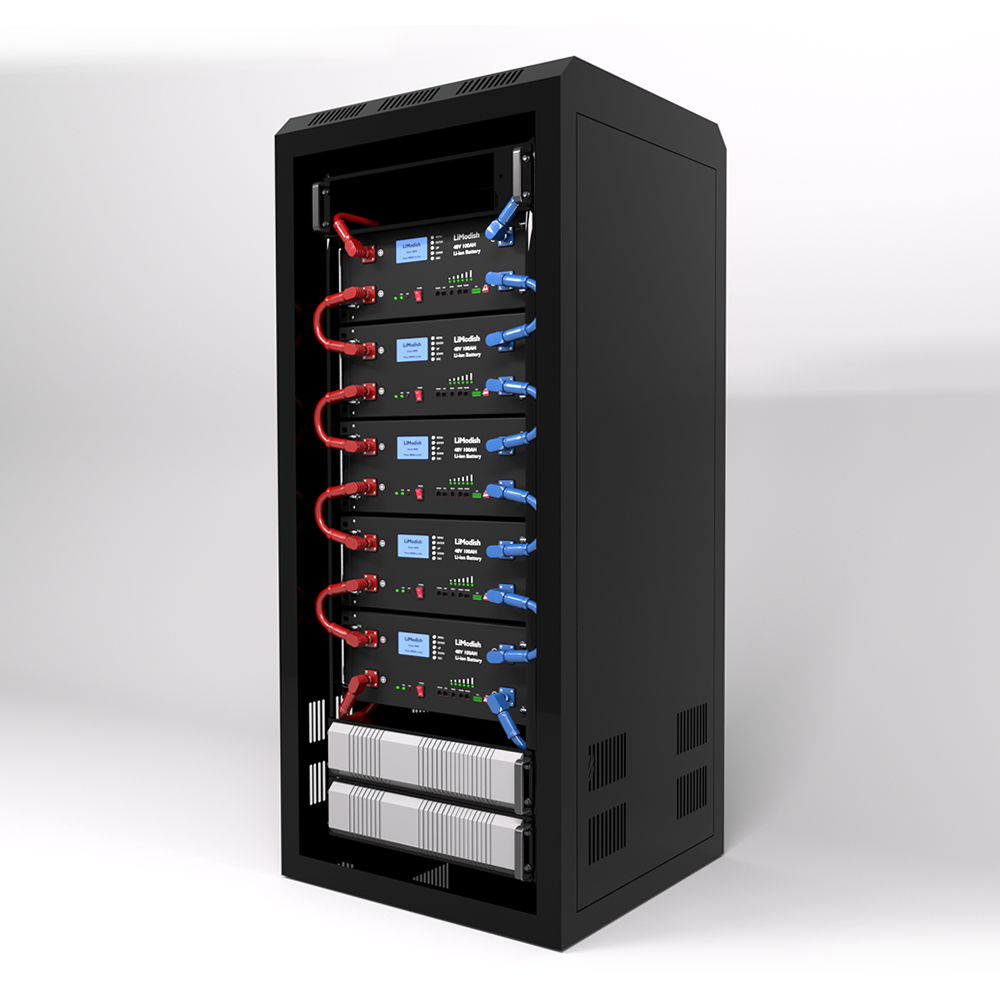

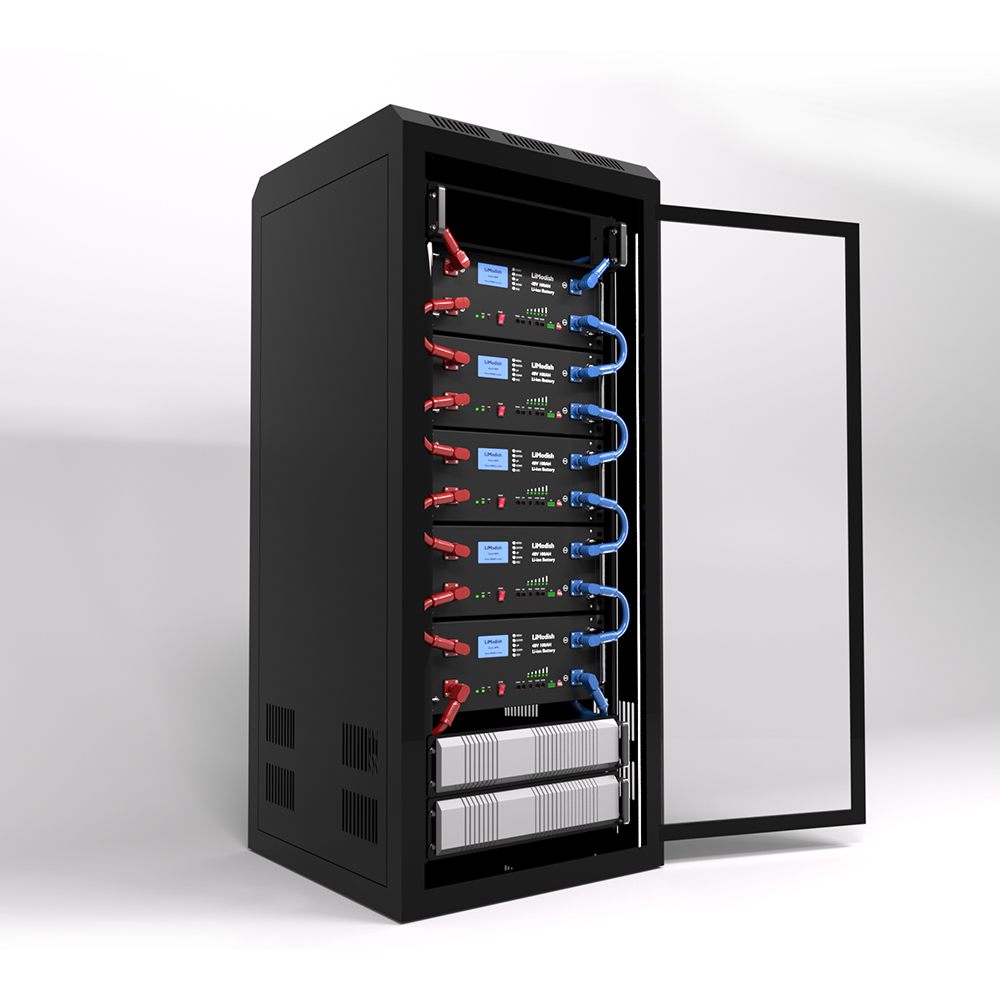

Base and Solar Station Power Storage in Cabinet 4U Complete Set

Item No.: 00097
The Limodish Rackmount 48V 100AH Li-Ion Rack Battery is a safe, cobalt-free lithium-ion battery product based on a scalable Lithium Iron Phosphate ESS energy storage system. This product is an ultra-thin 3U or 4U, 48V, 100Ah rack mount.
Description
Description
The Limodish Rackmount 48V 100AH Li-Ion Rack Battery is a safe, cobalt-free lithium-ion battery product based on a scalable Lithium Iron Phosphate ESS energy storage system. This product is an ultra-thin 3U or 4U, 48V, 100Ah rack-mount lithium iron phosphate (LiFePO4) 4.8KWH deep cycle battery, energy storage battery module. It can be used with cabinets such as server chassis. In the cabinet's fan heating system, the battery's operation is fully guaranteed. Rechargeable cycle life 10000+ times, 3000 above 80% Capacity.

Rack UPS batteries combine fast charging, high efficiency, high-temperature resistance, and increased storage capacity. Our carefully engineered, sturdy, and safe cylindrical batteries for server rack batteries and battery management systems. You will get a safe and reliable battery that is easy to install and maintenance-free.
The 48v 100ah battery is designed and manufactured for a simple, safe, reliable energy storage system.

The LiFePO4 solar cell is available in multiple options 50ah, 100ah, 150ah, and 200ah, which means it can provide capacities of 2.4kWh, 4.8kWh, 7.2kWh, and 9.6kWh for different applications.

Each Battery Pack Parameters

Type

48V
150Ah

51.2V
150Ah

48V
200Ah

51.2V
200Ah

Nominal voltage

48.0V

51.2V

48.0V

51.2V

Rated capacity

200Ah

300Ah

Charge off voltage

54.0V

58.0V

54.0V

58.0V

Discharge off voltage

39.0V

40.0V

39.0V

40.0V

Standard charging current

45A

45A

60A

60A

Maximum charging current

75A/100A

75A/100A

100A

100A

Standard discharge current

100A

100A

100A

100A

Maximum discharge current

150A/200A

150A/200A

150A/200A

150A/200A

Maximum peak current

200A/300A

200A/300A

200A/300A

200A/300A

Communication mode

RS 485 / CAN (RS 232 /
Bluetooth is optional)

Charge / discharge interface

M8 stud / (2P terminal row is optional)

CI

RJ 45

External material/color

Metal / White + Black (color optional)

Size

442*400*311mm
442*400*233mm

442*680*311mm
442*680*233mm

Weight

72kg (approx) 68kg (approx)

76kg (approx) 72kg (approx)

98kg (approx.)
90kg(approx)

100kg (approx.)
92kg(approx)

Temperature range

Charge: 0°C-50°C, Discharge: -15°C-60°C
