Description

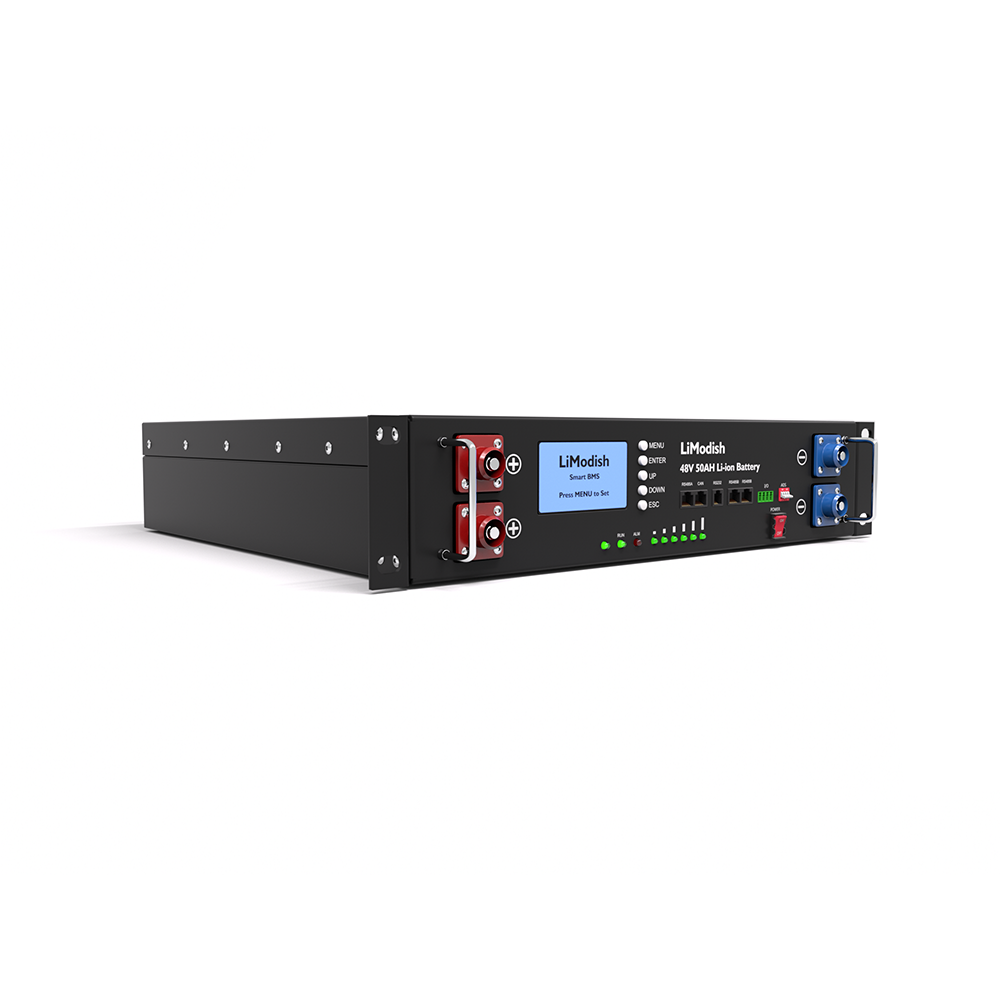

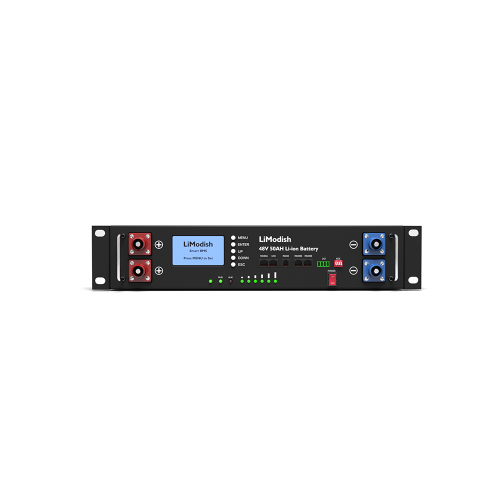

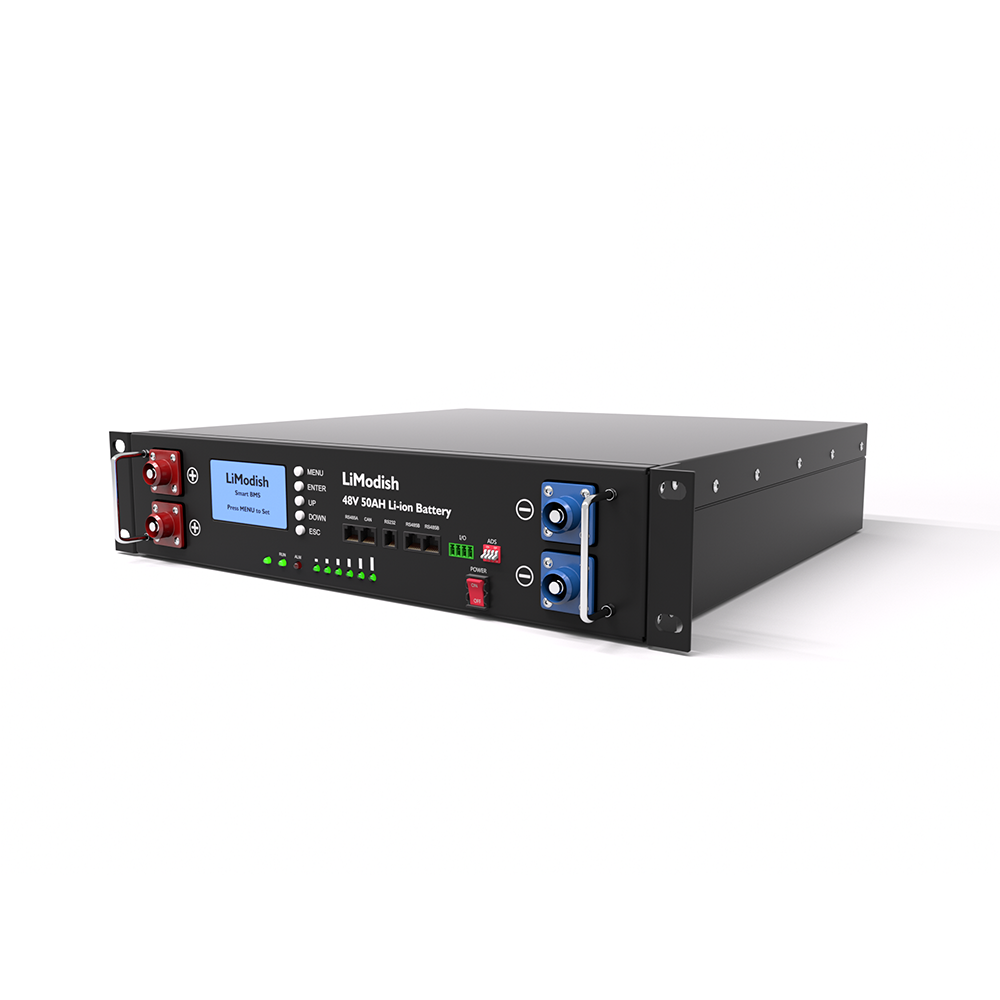

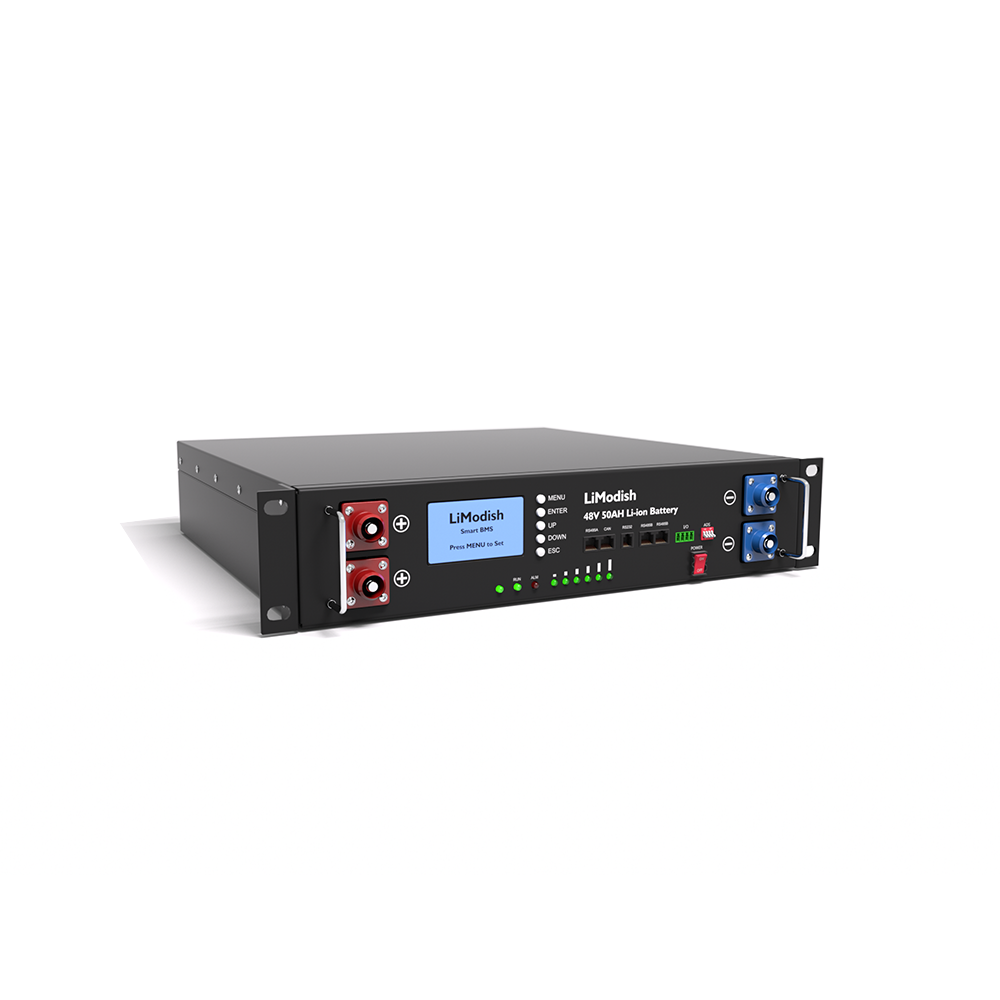

The server rack-mounted lithium battery in the energy storage system is a robust and scalable lithium iron phosphate battery. That can be used in solar energy storage systems, other energy storage applications (small grids, solar power plants, industrial, UPS, telecommunications, weak current off-grid, home energy storage) systems, smart grids, etc.).

The advantages of modularity and scalability: can manage ESSs as small as 4.8KW-48V and quickly expand to some large ESSs larger than 200KWH-48V. It can be used with cabinets such as server chassis. In the limited space of the cabinet, 2U lithium battery equipment can be installed and applied flexibly and can also be used flexibly with other equipment, such as inverters, fan systems, and management equipment. In the communication room, this 2U device can also be used as the supply power to network switches and optical link terminals to ensure the uninterrupted operation of the network. The battery's operation is guaranteed in the cabinet's fan heating system.

Type	48V 50Ah	51.2V 50Ah	48V 100Ah	51.2V 100Ah
Nominal voltage	48.0V	51.2V	48.0V	51.2V
Rated capacity	50Ah		100Ah
Charge off voltage	54.0V	58.0V	54.0V	58.0V
Discharge off voltage	39.0V	40.0V	39.0V	40.0V
Standard charging current	15A	15A	30A	30A
Maximum charging current	25A/50A	25A/50A	50A/100A	50A/100A
Standard discharge current	25A	25A	50A	50A
Maximum discharge current	50A	50A	100A	100A
Maximum peak current	100A	100A	200A	200A
Communication mode	RS 485 / CAN (RS 232 / Bluetooth is optional)
Charge / discharge interface	M8 stud / (2P terminal row is optional)
CI	RJ 45
External material/color	Metal / White + Black (color optional)
Size	442450133mm 44240090mm		442510155mm 442450133mm
Weight	27kg(approx) 25kg(approx)	29kg (approx) 27kg (approx)	47.5 kg (approx.) 44kg(approx.)	49.5kg (approx) 46kg (approx)
Temperature range	Charge: 0°C-50°C, Discharge: -15°C-60°C
