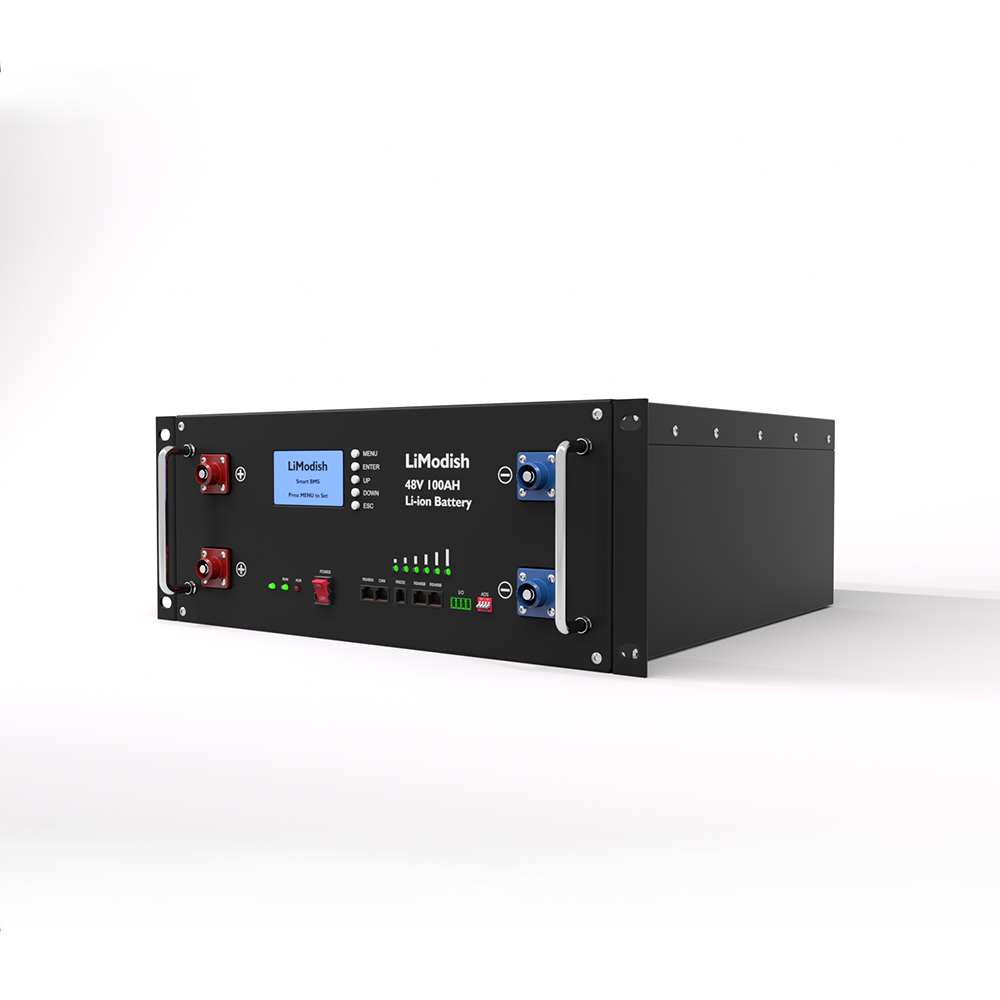

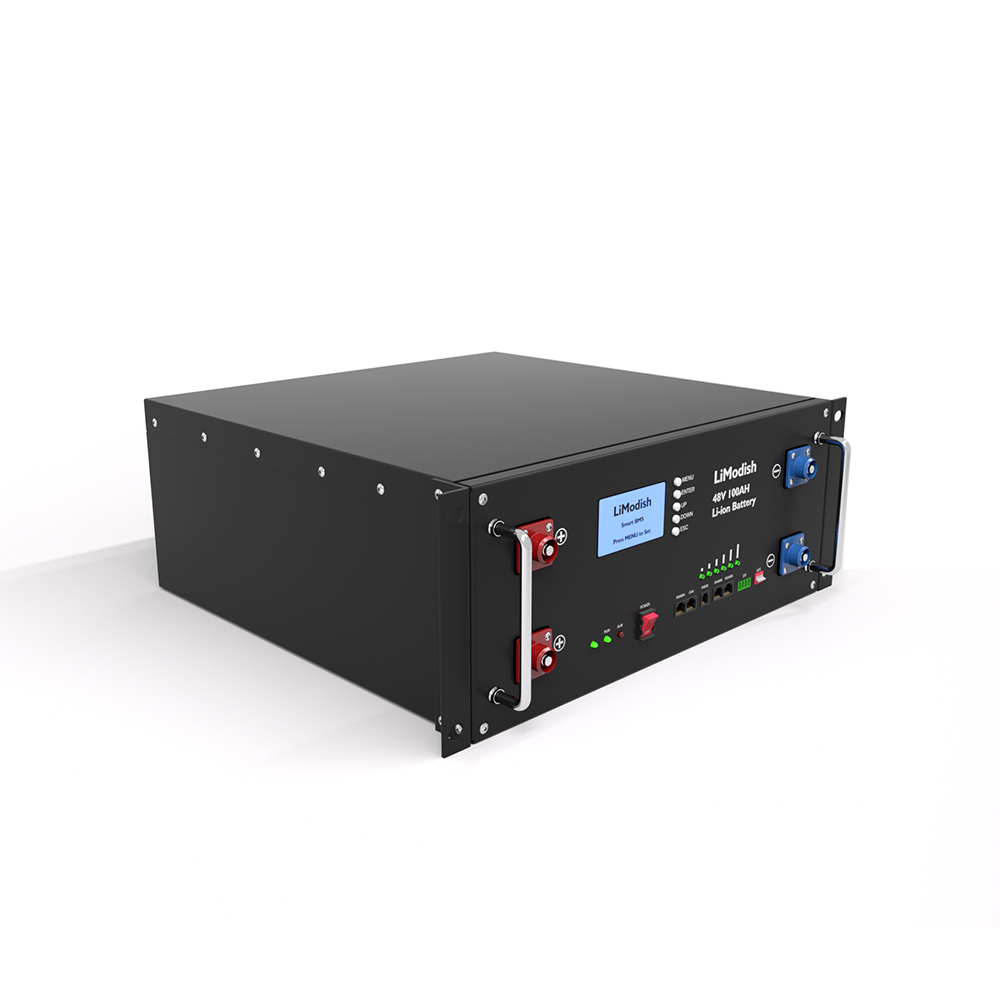

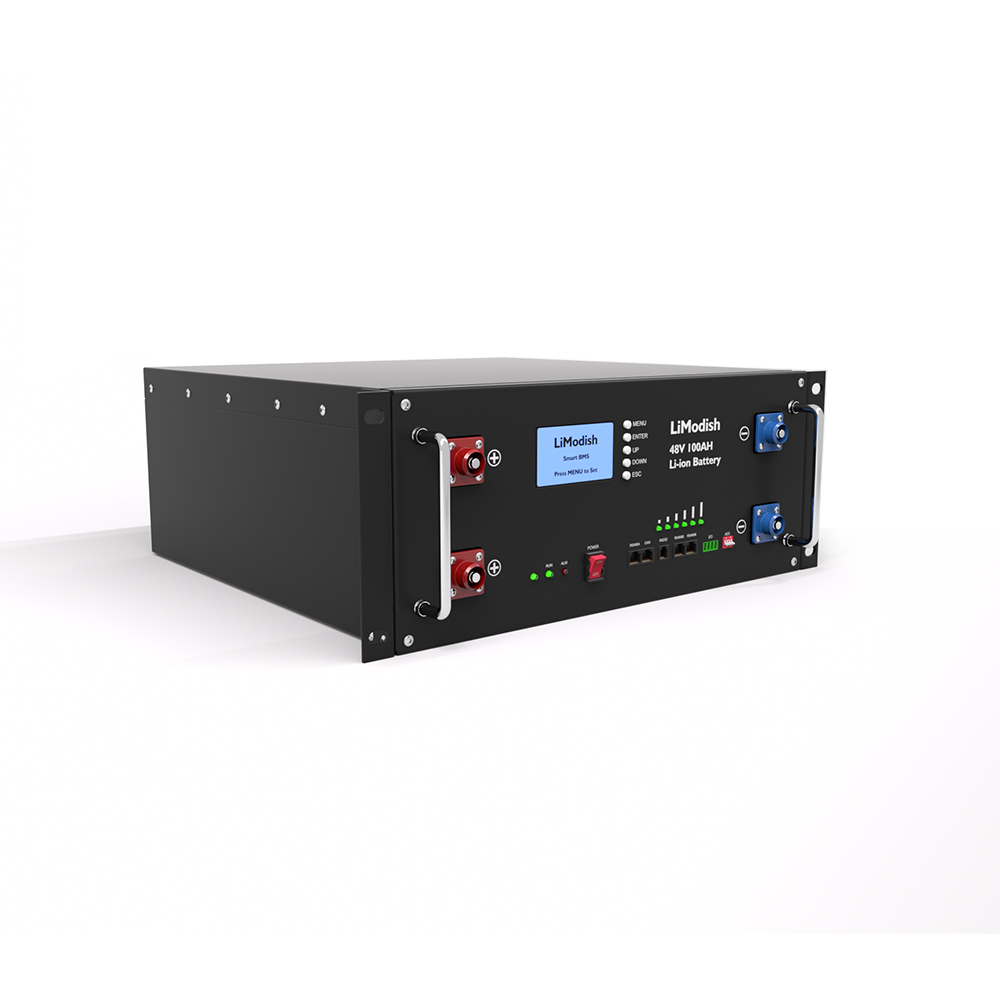

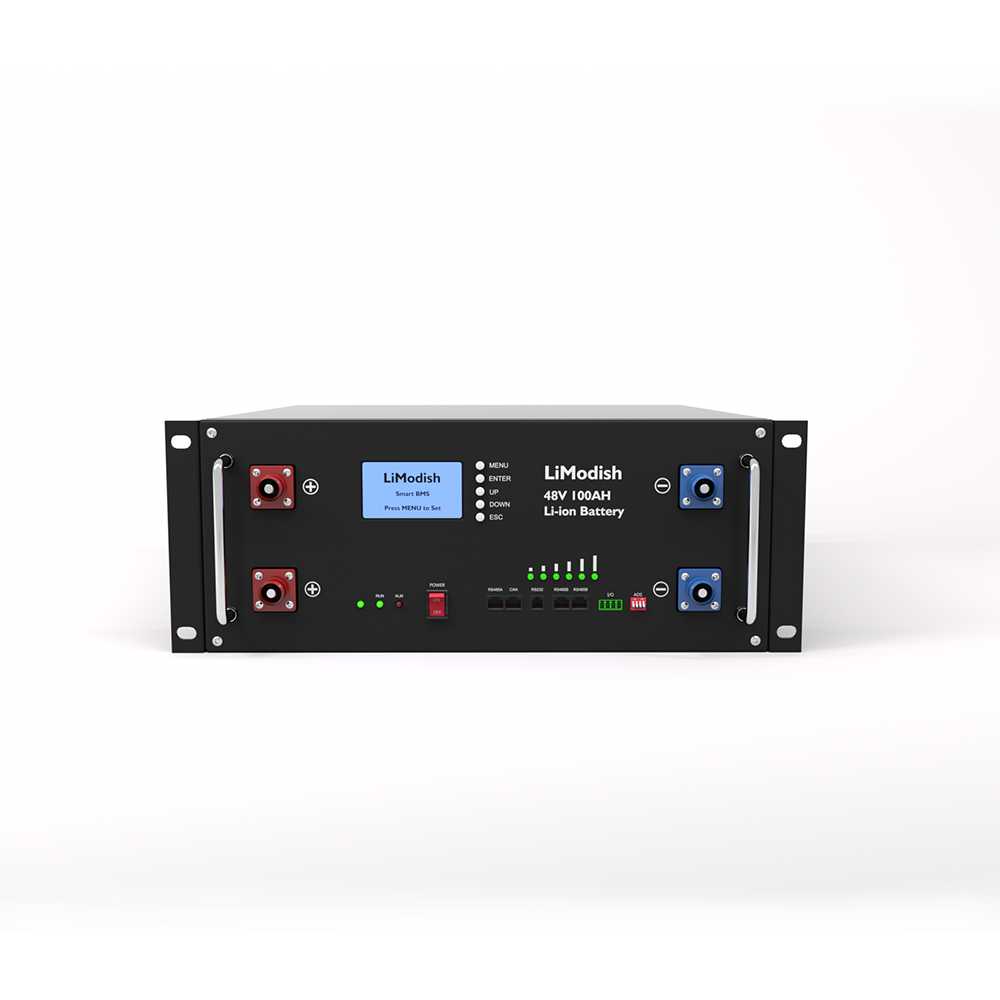

Base Station Power Storage-4U for Server Rack Battery Pack

Description

Limodish 48v 100Ah 150Ah 200Ah LiFePO4 server rack battery with built-in 15 strings of 3.2V battery pack. A plastic bracket is used to attach the battery, providing 4.8kwh of power storage. Built-in intelligent BMS protocol board, monitor battery temperature, power, voltage and other data through mobile phone or PC. Each battery has a built-in battery management system (BMS) that provides over-under-voltage, over-current, over-temperature, short-circuit and reliable service life by managing battery string balance.

When one battery needs to shut itself down or the capacity is insufficient, the remaining batteries will continue to operate at normal capacity for the entire energy storage battery system.

Type	48V 150Ah	51.2V 150Ah	48V 200Ah	51.2V 200Ah
Nominal voltage	48.0V	51.2V	48.0V	51.2V
Rated capacity	200Ah		300Ah
Charge off voltage	54.0V	58.0V	54.0V	58.0V
Discharge off voltage	39.0V	40.0V	39.0V	40.0V
Standard charging current	45A	45A	60A	60A
Maximum charging current	75A/100A	75A/100A	100A	100A
Standard discharge current	100A	100A	100A	100A
Maximum discharge current	150A/200A	150A/200A	150A/200A	150A/200A
Maximum peak current	200A/300A	200A/300A	200A/300A	200A/300A
Communication mode	RS 485 / CAN (RS 232 / Bluetooth is optional)
Charge / discharge interface	M8 stud / (2P terminal row is optional)
CI	RJ 45
External material/color	Metal / White + Black (color optional)
Size	442400311mm 442400233mm		442680311mm 442680233mm
Weight	72kg (approx) 68kg (approx)	76kg (approx) 72kg (approx)	98kg (approx.) 90kg(approx)	100kg (approx.) 92kg(approx)
Temperature range	Charge: 0°C-50°C, Discharge: -15°C-60°C
