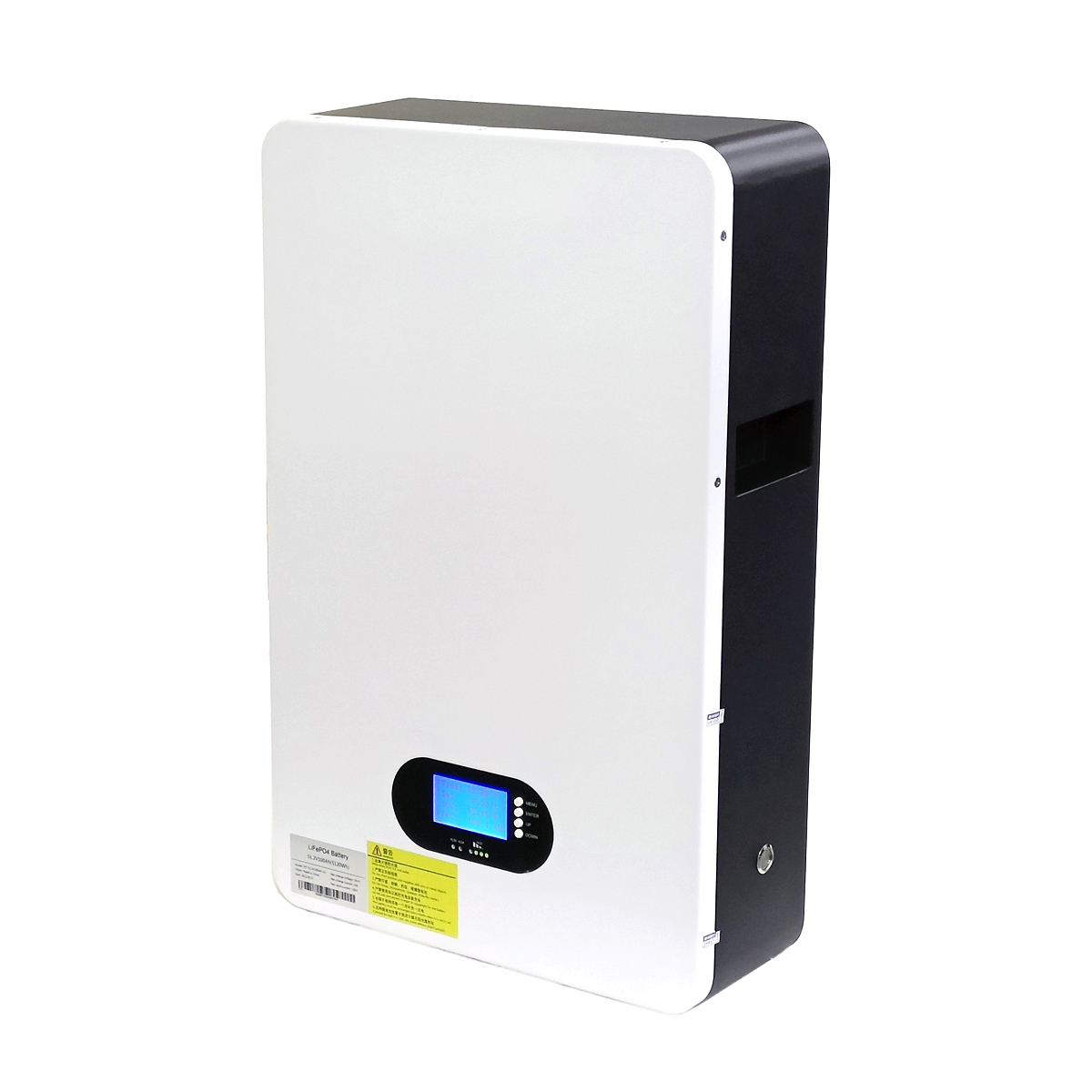

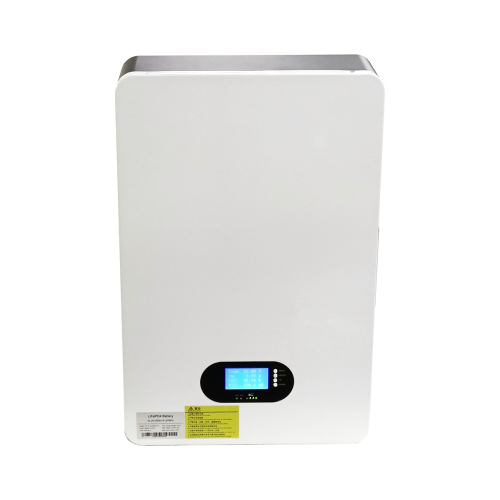

Limodish Wall Mounted LiFePO4 Energy Storage Batteries provide remote control and help to monitor the status of LiFePO4 batteries. The GPS function inside the lithium battery case provides location tracking of the battery to prevent theft. Whenever you use the battery APP on your phone, you can easily track the location information of the lithium-ion battery. In addition, the GPRS function provides a powerful management function, which can monitor various data of the lithium battery, including battery temperature, voltage, etc.
Lithium iron phosphate batteries are ideal energy storage systems that can connect to inverters of different brands to convert electrical energy efficiently. Moreover, it provides a stable and reliable energy supply, as the integrated emergency power function can continuously supply power to the house in the event of a power outage or failure.
Our customizable, versatile energy storage systems support multiple essential circuits in your home, expand to meet your specific power needs, and integrate directly with your home's circuits for a more seamless backup power experience.
|
Type
|
24V
200Ah
|
48V
100Ah
|
51.2V
100Ah
|
|
Nominal voltage
|
25.6V
|
48.0V
|
51.2V
|
|
Rated capacity
|
200Ah
|
100Ah
|
|
Charge off voltage
|
29.2V
|
54.0V
|
58.0V
|
|
Discharge off voltage
|
20.0V
|
39.0V
|
40.0V
|
|
Standard charging current
|
60A/ 100A
|
30A/ 100A
|
30A/ 100A
|
|
Maximum charging current
|
100A
/200A
|
50A/ 100A
|
50A/ 100A
|
|
Standard discharge current
|
100A
|
100A
|
100A
|
|
Maximum discharge current
|
200A
|
150A
|
150A
|
|
Maximum peak current
|
300A
|
200A
|
200A
|
|
Communication mode
|
RS 485 / CAN (RS 232 /
Bluetooth is optional)
|
|
Charge / discharge interface
|
M8 stud / (2P terminal row is optional)
|
|
CI
|
RJ 45
|
|
Shell material / color
|
Metal / White + Black (color optional)
|
|
Size
|
600*480*165mm
|
|
Weight
|
52kg(approx)
50kg(approx)
|
49kg (approx)
47kg (approx)
|
51 kg (approx.) 49kg(approx.)
|
|
Temperature
range
|
Charge: 0°C-50°C, discharge: -15°C-60°C
|
