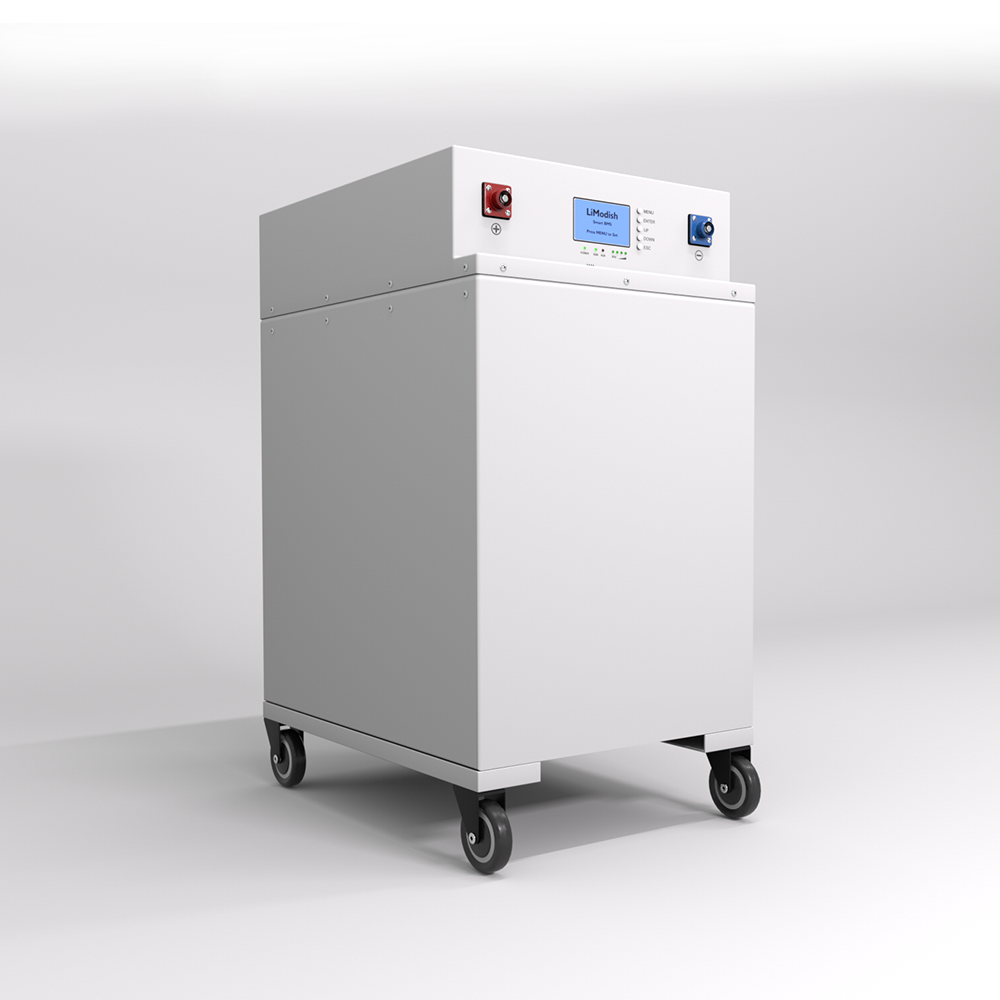

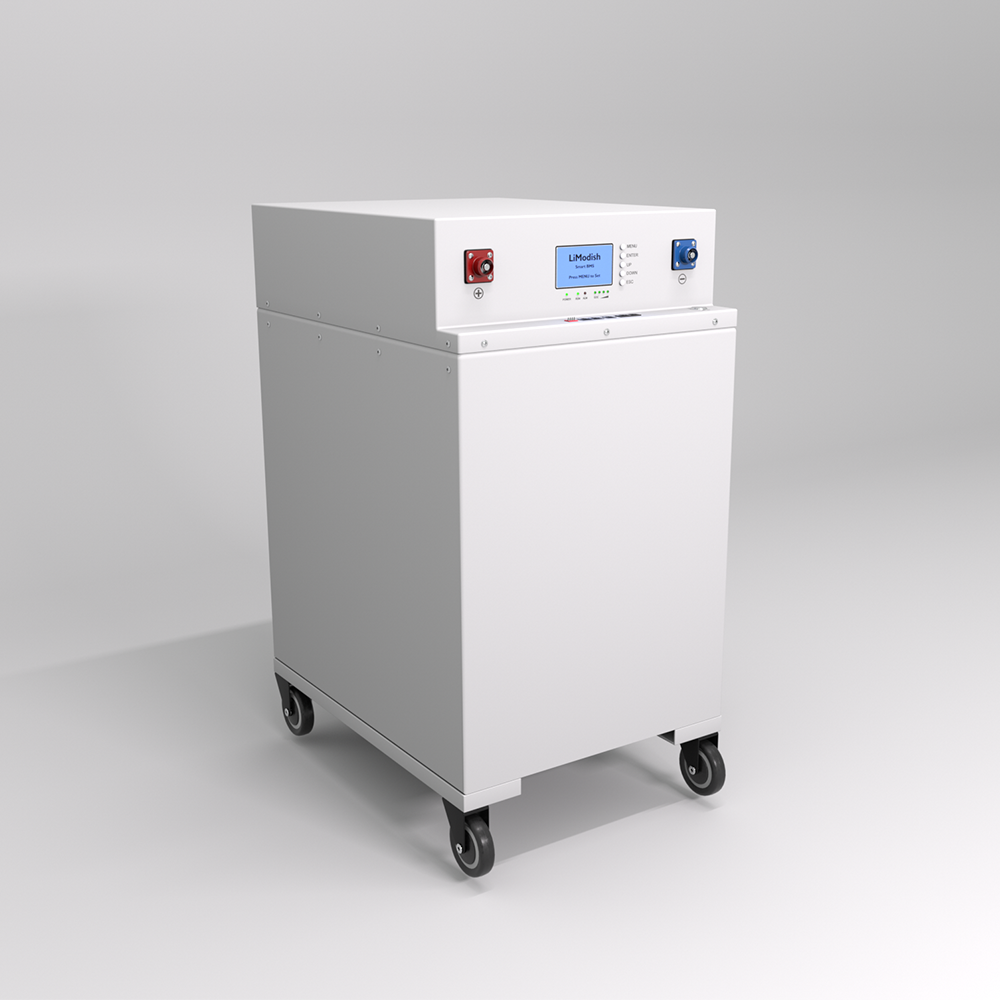

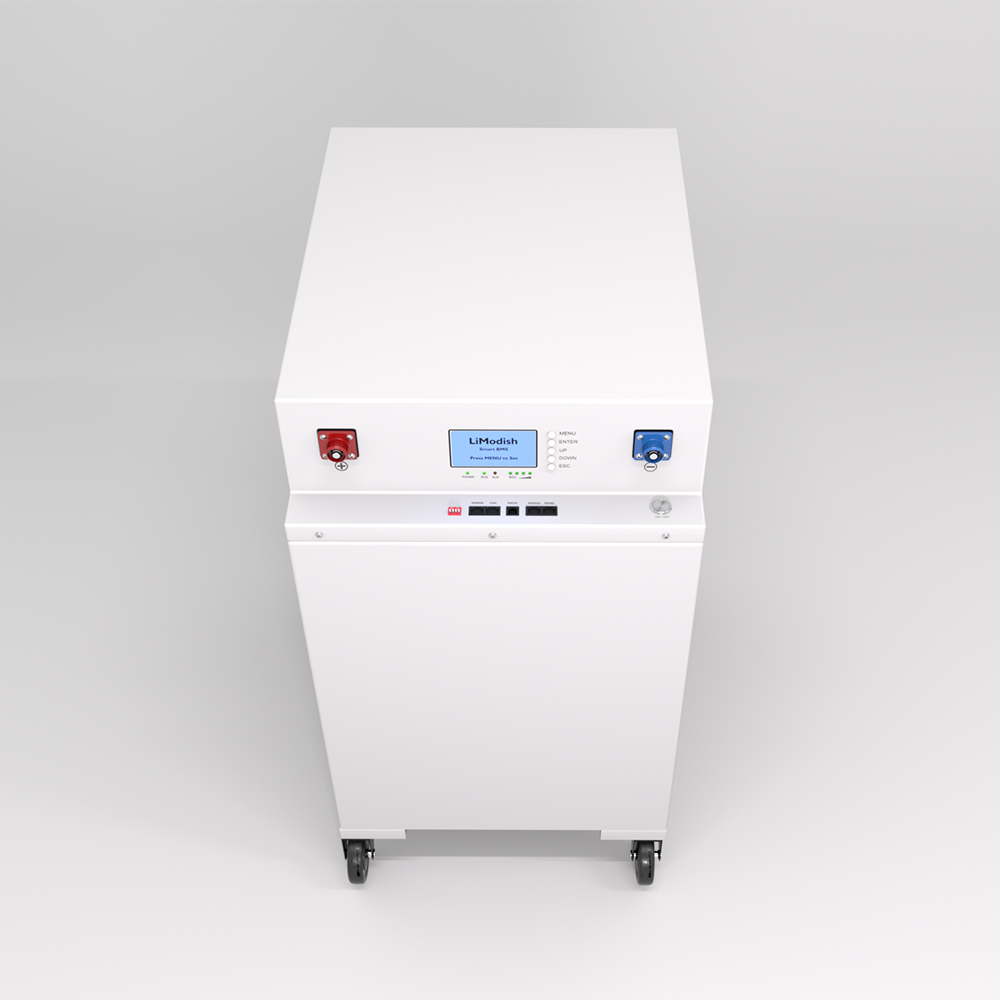

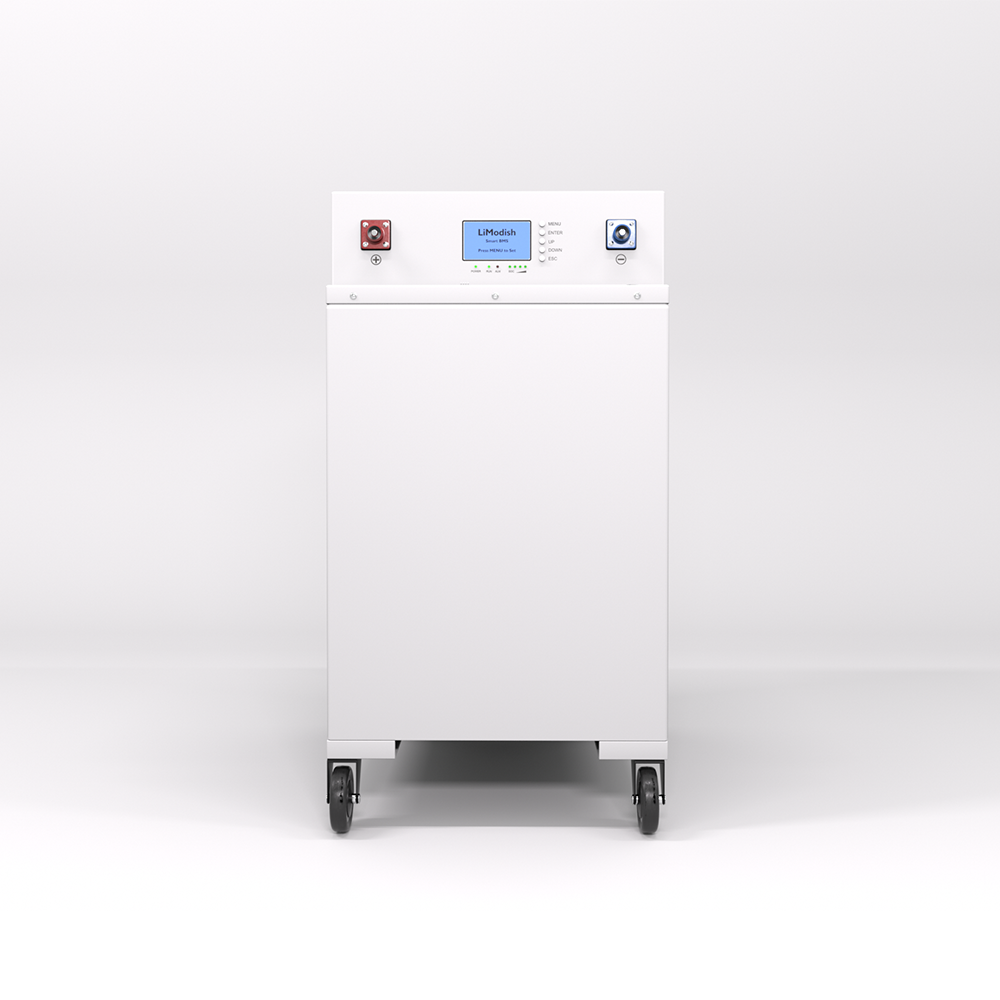

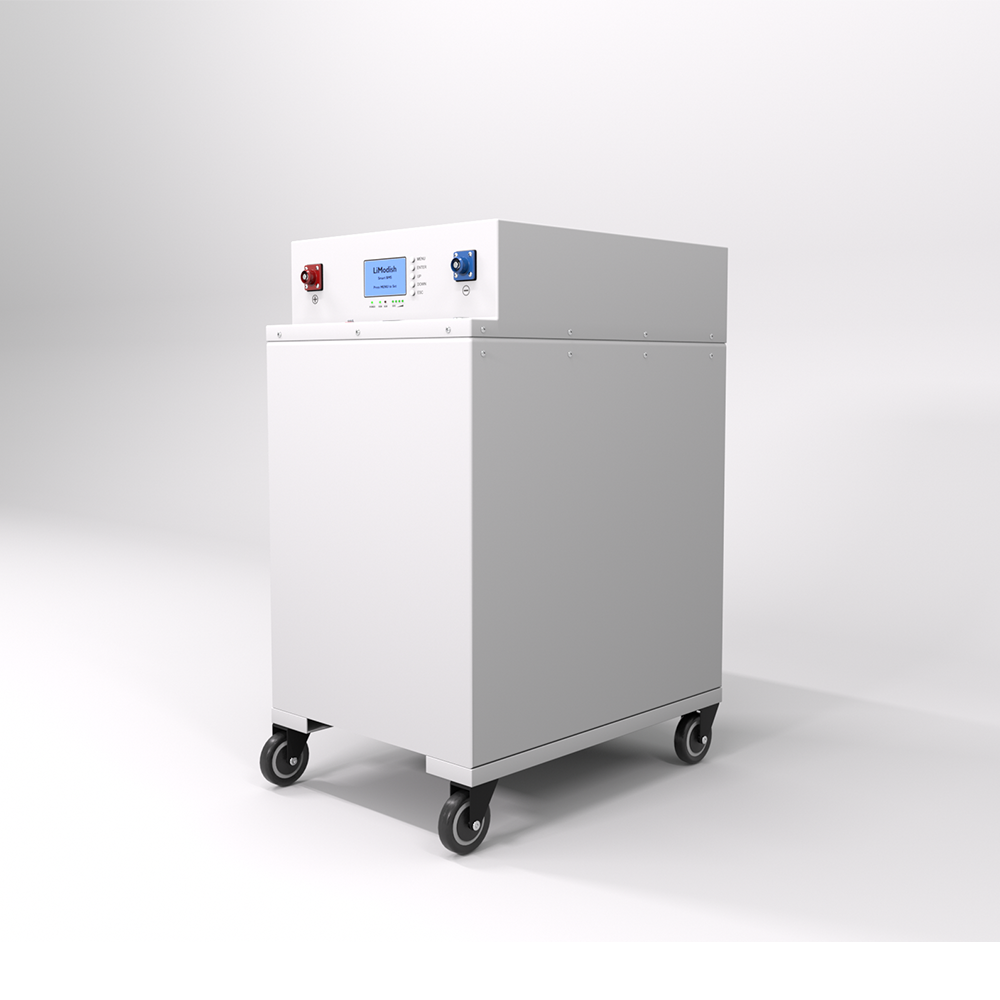

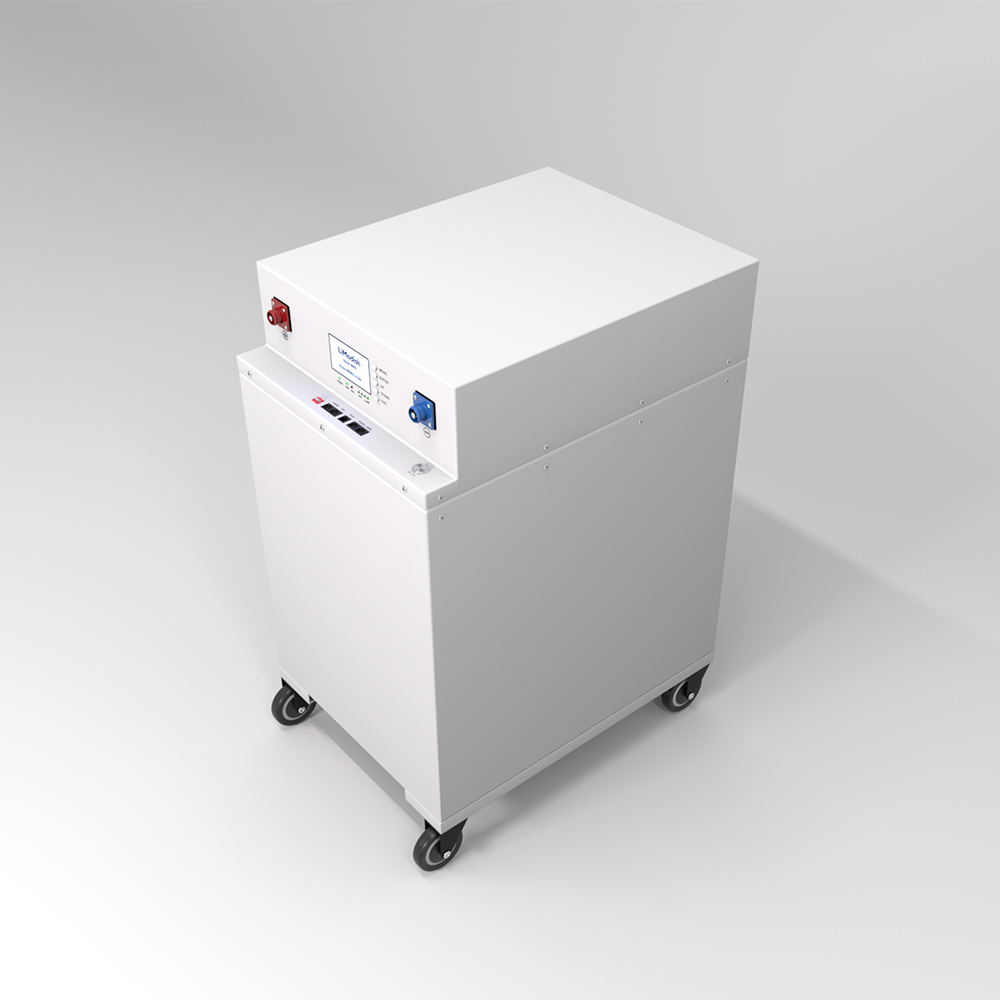

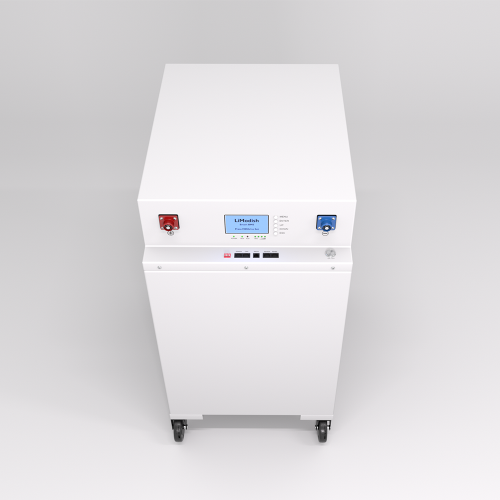

Console and Floor Type Lithium-ion Battery for Home or Solar Energy Storage

Item No.: 00098
The Console and Floor Type Lithium-ion Battery for Home or Solar Energy Storage was designed for home or solar base station power backup applications.
Description
Description

24V/48V/51.2V LiFePO(Lithium Iron Phosphate) Battery New Floor Type For Photovoltaic Home 10KWh 20KWh System With Communication Smart House
The Console and Floor Type Lithium-ion Battery for Home or Solar Energy Storage was designed for home or solar base station power backup applications. The control interface is just right on top of the equipment. Easy to control and plug the cable. 4 rubber wheels under this battery pack make the power application environment flexible. Rechargeable cycle life 10000+ times, 3000 above 80% Capacity.

Scope of application:

Home energy storage, communication base station, industrial energy storage, mobile energy storage, field camping, garage backup energy storage, and solar energy storage.

BMS features

Active balancing of current and voltage, adjustment of cells, highly integrated functions, multiple protections, and ultra-high-precision real-time monitoring.

  • Overcharge protection.
  • Over-discharge protection
  • overcurrent protection
  • Short circuit protection
  • Temperature control protection
  • Cell balance protection


Brief Features

  • Can work with 30+ Global Mainbrands of Inverters
  • Lightweight & Safer, and Steady battery
  • Support 485 And CAN Communication
  • Certifications Available & Perfect compatibility
  • Supports Max 15 Sets In Parallel



Type

24V
200Ah

48V
100Ah

51.2V
100Ah

48V
150Ah

51.2V
150Ah

48V
200Ah

51.2V
200Ah

Nominal voltage

25.6V

48.0V

51.2V

48.0V

51.2V

48.0V

51.2V

Rated capacity

200Ah

100Ah

200Ah

300Ah

Charge off voltage

29.2V

54.0V

58.0V

54.0V

58.0V

54.0V

58.0V

Discharge off voltage

20.0V

39.0V

40.0V

39.0V

40.0V

39.0V

40.0V

Standard charging current

60A

30A

30A

60A

60A

100A

100A

Maximum charging current

100A

50A

50A

100A

100A

100A

100A

Standard discharge current

100A

100A

100A

100A

100A

100A

100A

Maximum discharge current

200A

200A

200A

200A

200A

200A

200A

Maximum peak current

300A

300A

300A

300A

300A

300A

300A

Communication mode

RS 485 / CAN (RS 232 /
Bluetooth is optional)

Charge/discharge interface

M8 stud / (2P terminal row is optional)

CI

RJ 45
